by Sheet metal design is a crucial aspect of product manufacturing, offering lightweight and cost-effective solutions for various industries like automotive, aerospace, and consumer electronics. If you are preparing for a sheet metal design interview, it is important to understand the core concepts, techniques, and tools involved in this field. Here is a list of common sheet metal design interview questions along with their answers to help you succeed.
Basic Questions on Sheet Metal Design
What is sheet metal, and why is it important in manufacturing?
Sheet metal is a flat piece of metal that can be cut, bent, and shaped into various forms. It is widely used due to its versatility, strength-to-weight ratio, and cost-effectiveness.
What are the key parameters to consider in sheet metal design?
-
- Material type (steel, Aluminum, brass, etc.)
- Thickness of the sheet
- Bend radius
- Tolerances
- K-factor
- Manufacturing feasibility

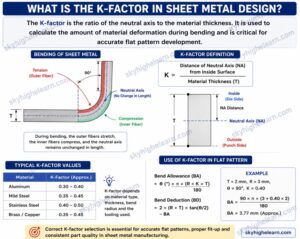

What is the K-factor in sheet metal design?
The K-factor is the ratio of the neutral axis to the material thickness. It is used to calculate the amount of material deformation during bending and is critical for accurate flat pattern development.
Why is bend radius important, and how is it determined?
Bend radius is the minimum radius that a sheet metal can be bent without cracking. It is determined by the material’s ductility and the tooling used. A general rule is to keep the bend radius at least equal to the sheet thickness.
What is the difference between blanking and punching?
-
- Blanking: A process where a piece is cut out from the sheet, forming the desired shape.
- Punching: The removal of unwanted material from the sheet, leaving a hole or pattern.
How do you avoid warping or deformation in sheet metal components?
-
- Use uniform material thickness.
- Design for proper stress distribution.
- Apply ribs or flanges for reinforcement.
- Avoid sharp corners; use fillets or rounded edges.
What are some common tools used in sheet metal design software?
-
- SolidWorks: Offers specialized sheet metal modules for creating flat patterns, bends, and forming tools.
- AutoCAD: Used for 2D drafting and layouts.
- CATIA and NX: Advanced CAD tools with integrated sheet metal design capabilities.
What is spring-back in sheet metal, and how is it compensated?
Spring-back refers to the tendency of sheet metal to return to its original shape after bending due to elastic recovery. It is compensated by over-bending or using advanced simulation tools to predict and adjust for the effect.
How do you ensure manufacturability in sheet metal design?
-
- Adhere to standard bend allowances.
- Minimize complex geometries.
- Use standard tooling sizes.
- Incorporate features like self-locating tabs and holes for assembly ease.
Describe a challenging sheet metal project you have worked on. How did you handle it?
Discuss the project’s complexity, such as tight tolerances, intricate geometry, or material constraints. Explain how you leveraged design tools, collaboration, and testing to deliver a successful outcome.
How would you reduce the cost of a sheet metal design?
-
- Optimize material usage and minimize waste.
- Simplify the design by reducing unnecessary bends or features.
- Use standard gauges and tooling.
- Partner with suppliers for cost-effective material sourcing.
What is your approach to troubleshooting issues in manufactured sheet metal parts?
Analyse the root cause using inspection tools and feedback from production teams. Adjust design parameters, such as bend radii or tolerances, and revalidate with prototypes.
